Modbar Steam System
¥1,101,200 JPY
90 Days Price Match policy
90-Day Return (Excl. Accessories & Consumables)
In-Store Pick-Up (No Pre-Orders)
Free Shipping! Most products dispatch within 1-2 business days

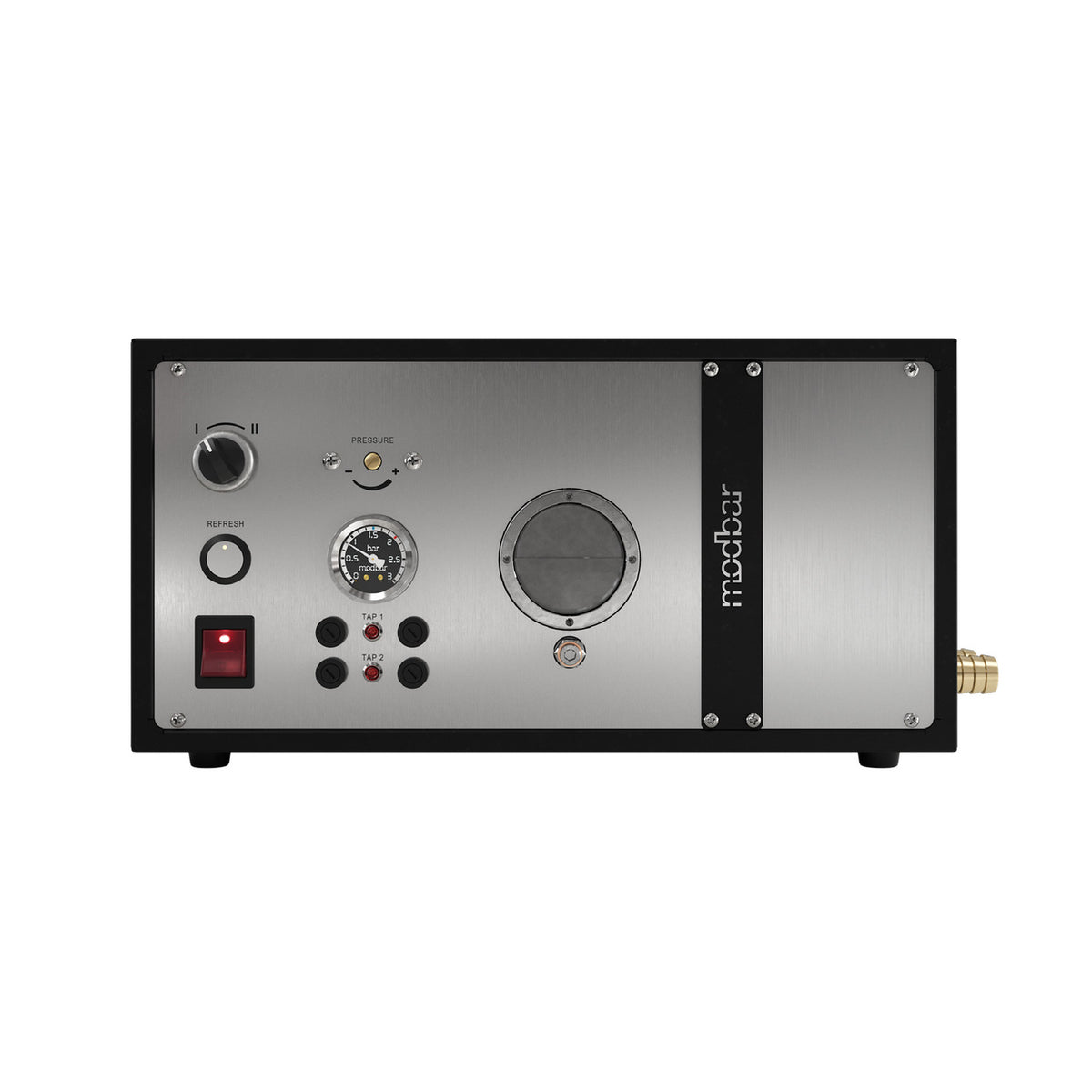

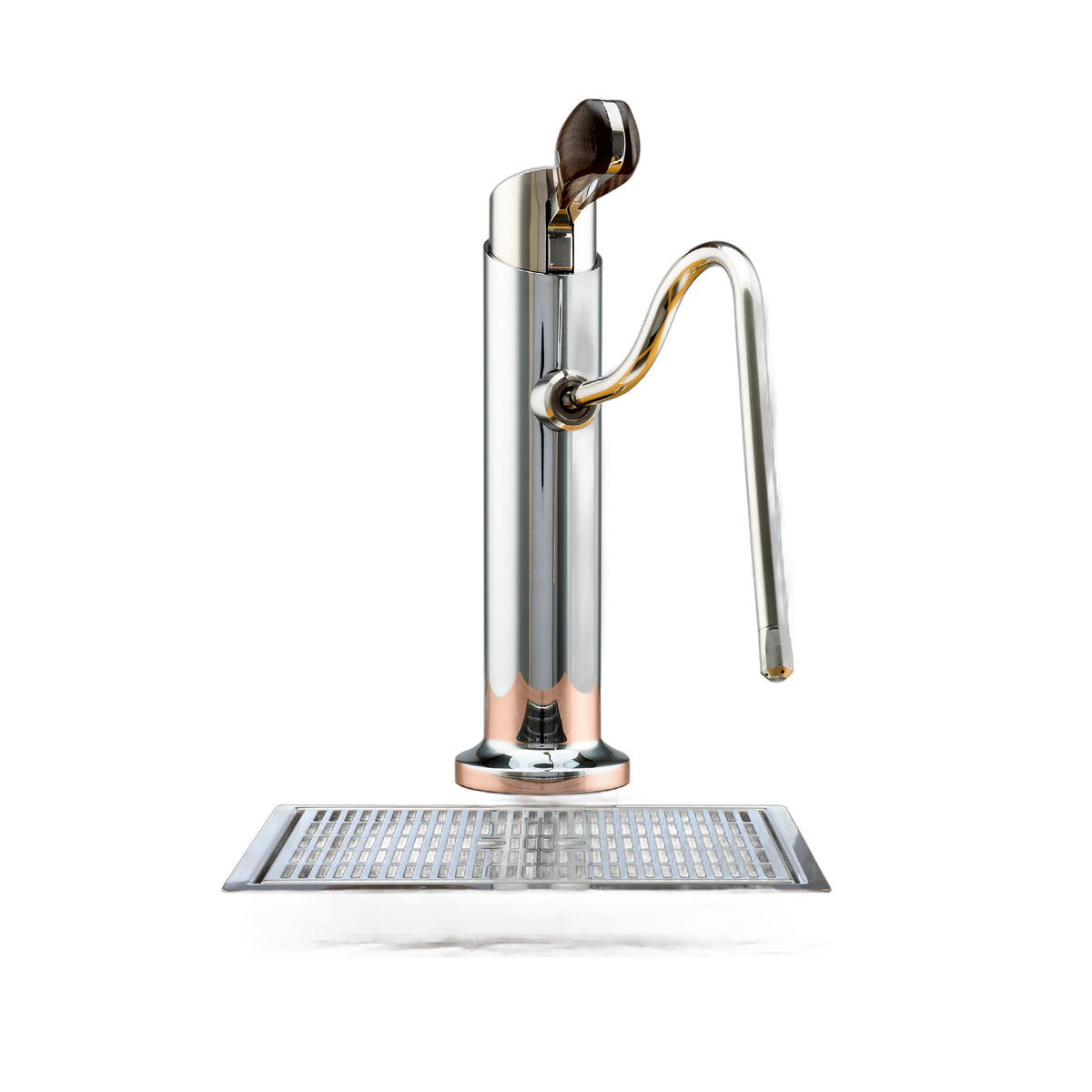

The Modbar Steam delivers a minimal, modern aesthetic coupled with power and control, crafted for ease of use and maintenance. The wand stands alone on the counter while the boiler module sits below, so the bar stays open and the barista stays visible.
Key features
- Set up one or two taps per module and arrange the under-counter to suit the space
- Improved engineering guarantees dry steam by eliminating condensation along the steam path
- Cool-touch, double-wall, vacuum-insulated Pro Touch steam wand
- Minimal purge required
- Refresh button recirculates water inside the boiler to avoid scale formation
- Right-hand connections for servicing; ergonomic handle matching the Espresso AV
- Customizable tap colours and handle finishes
Configurations
- 1 Group — 1 tap + 1 module
- 2 Group — 2 taps + 1 module
Specifications
| Tap dimensions (L×D×H) | 9 × 27 × 32 cm (3.5 × 10.7 × 12.4 in) |
| Tap weight | 3.5 kg (7.7 lbs) |
| Module dimensions (L×D×H) | 43 × 38 × 22 cm (17.0 × 14.9 × 8.5 in) |
| Module weight | 18 kg (40 lbs) |
| Boiler capacity | 4.6 L |
| Electrical (ETL / North America) | 208–240 V, 13 A, 2704 W, 60 Hz, single phase |
Commercial installation required. Plumbing, drain and a dedicated electrical circuit must be prepared by a qualified installer. Freight quoted separately.
