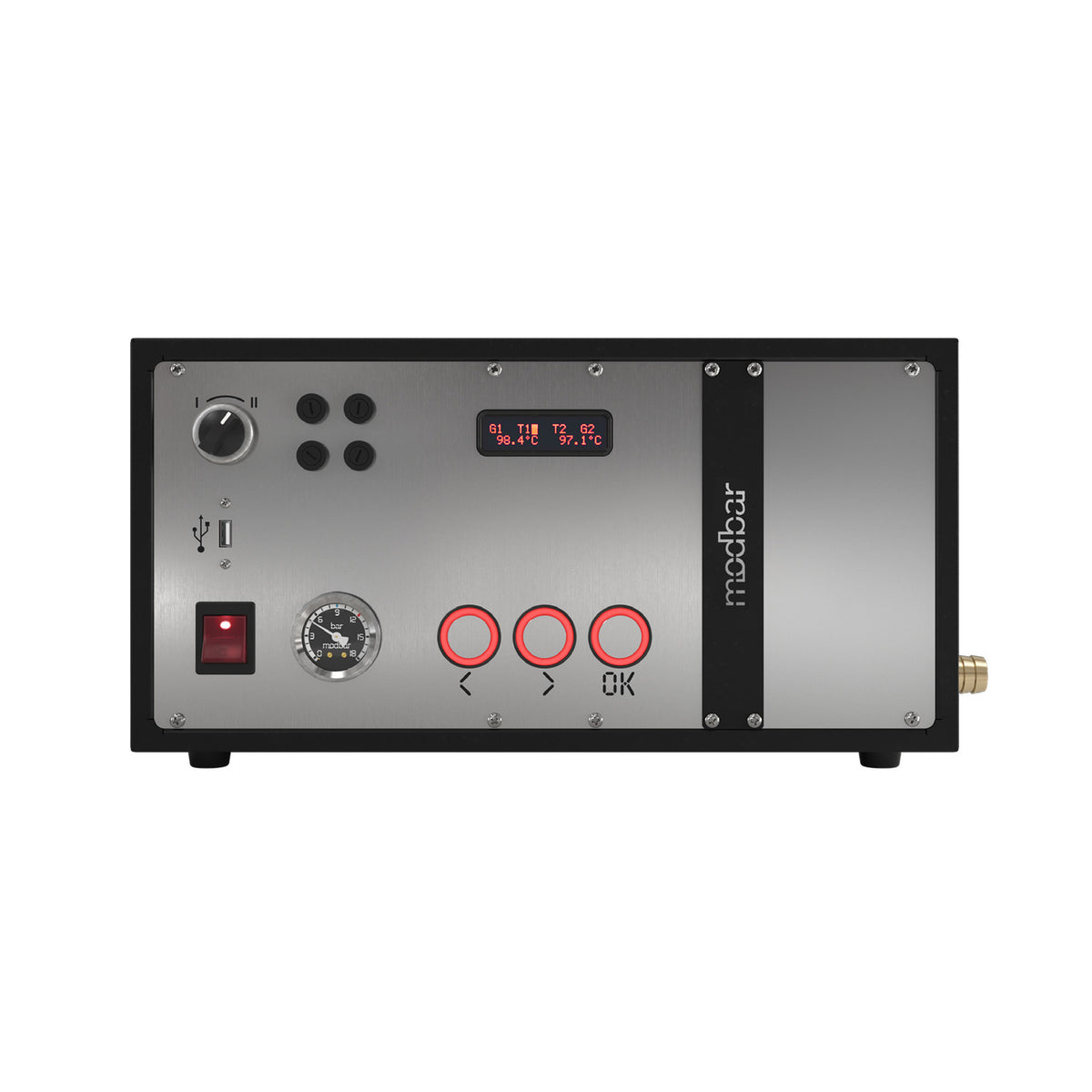

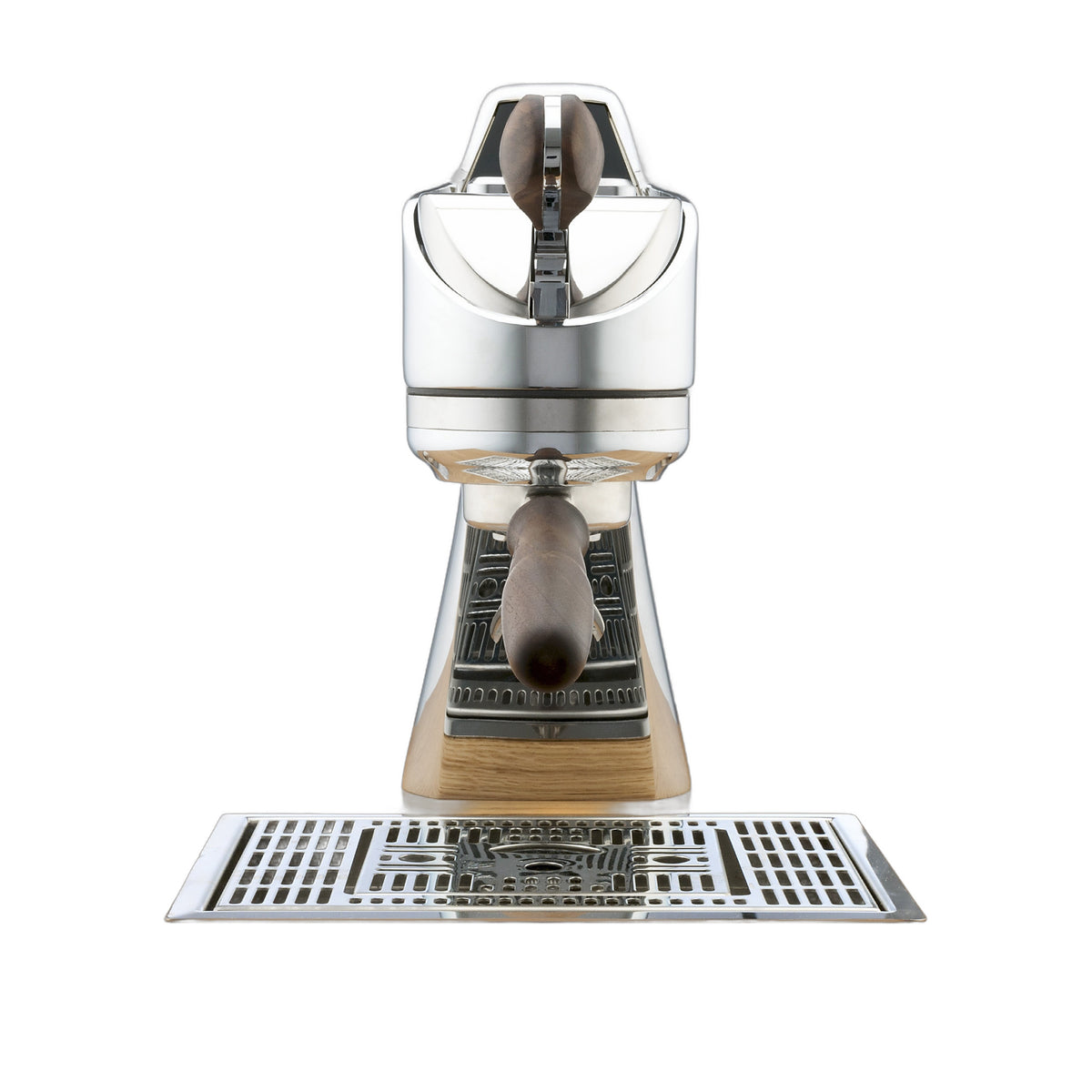

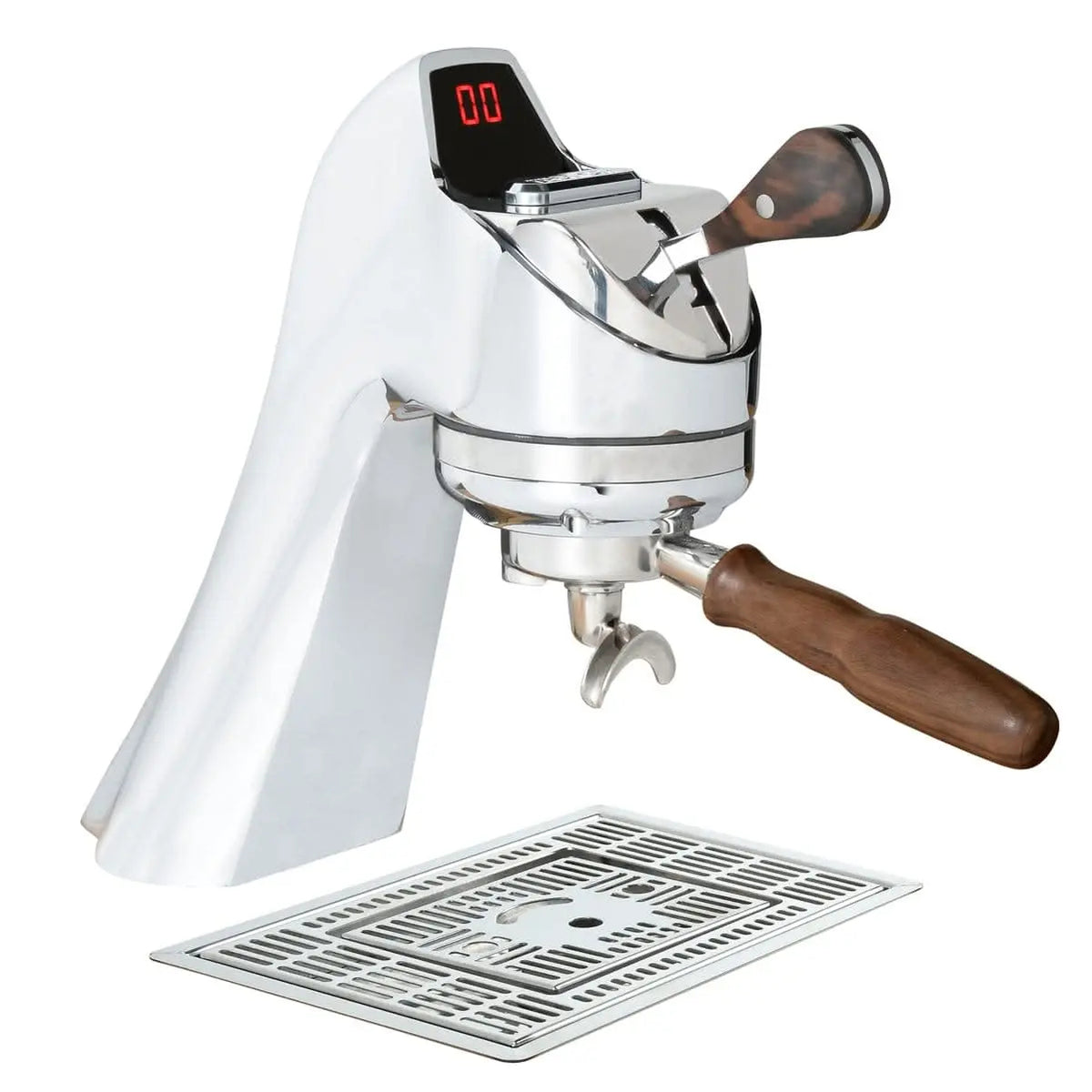

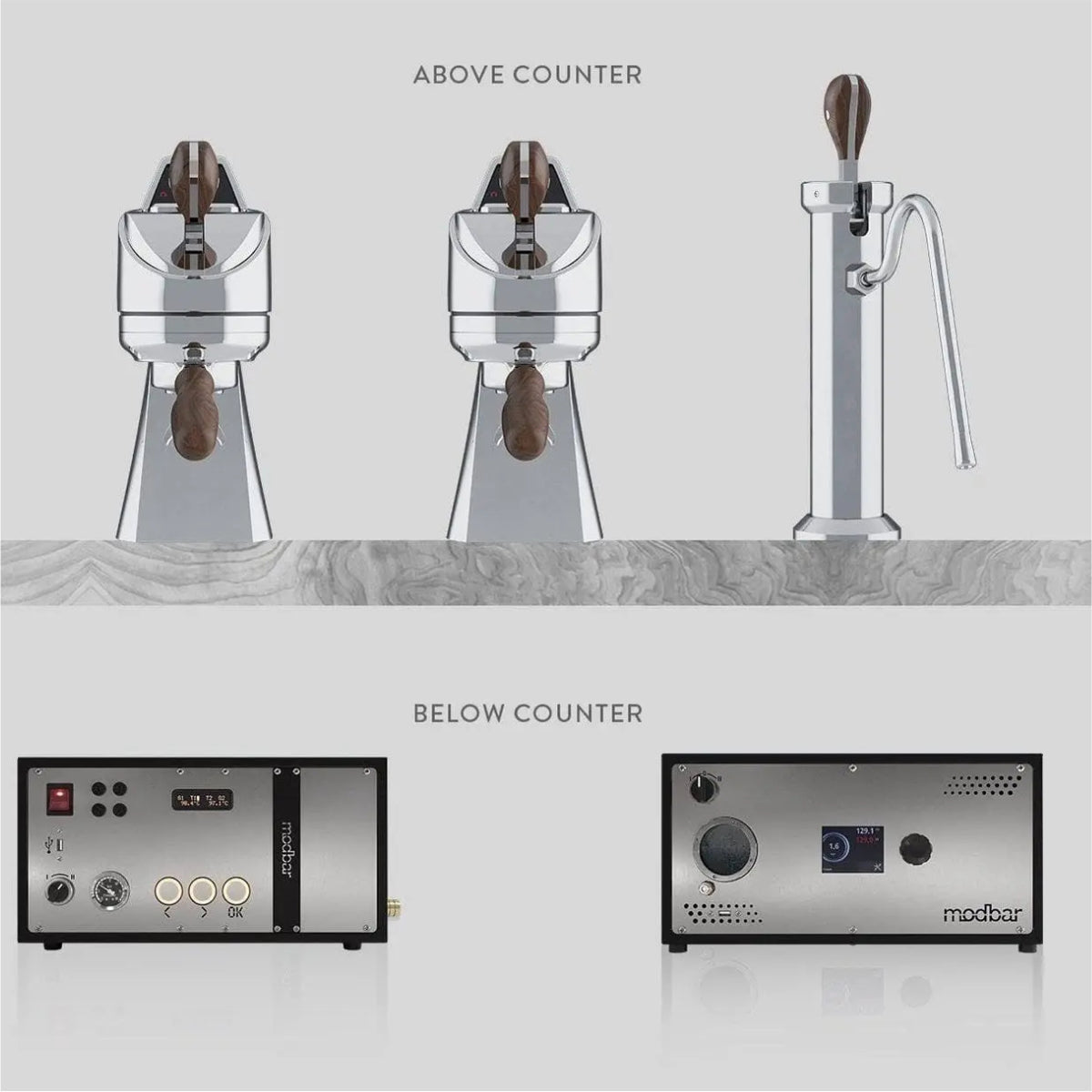

The Modbar Espresso AV is the most consistent and stable under-counter espresso machine available, crafted and sold in full partnership with La Marzocco. The brew group sits above the counter as a minimal tap while the module lives below, clearing sightlines between barista and customer without giving up performance.
Key features

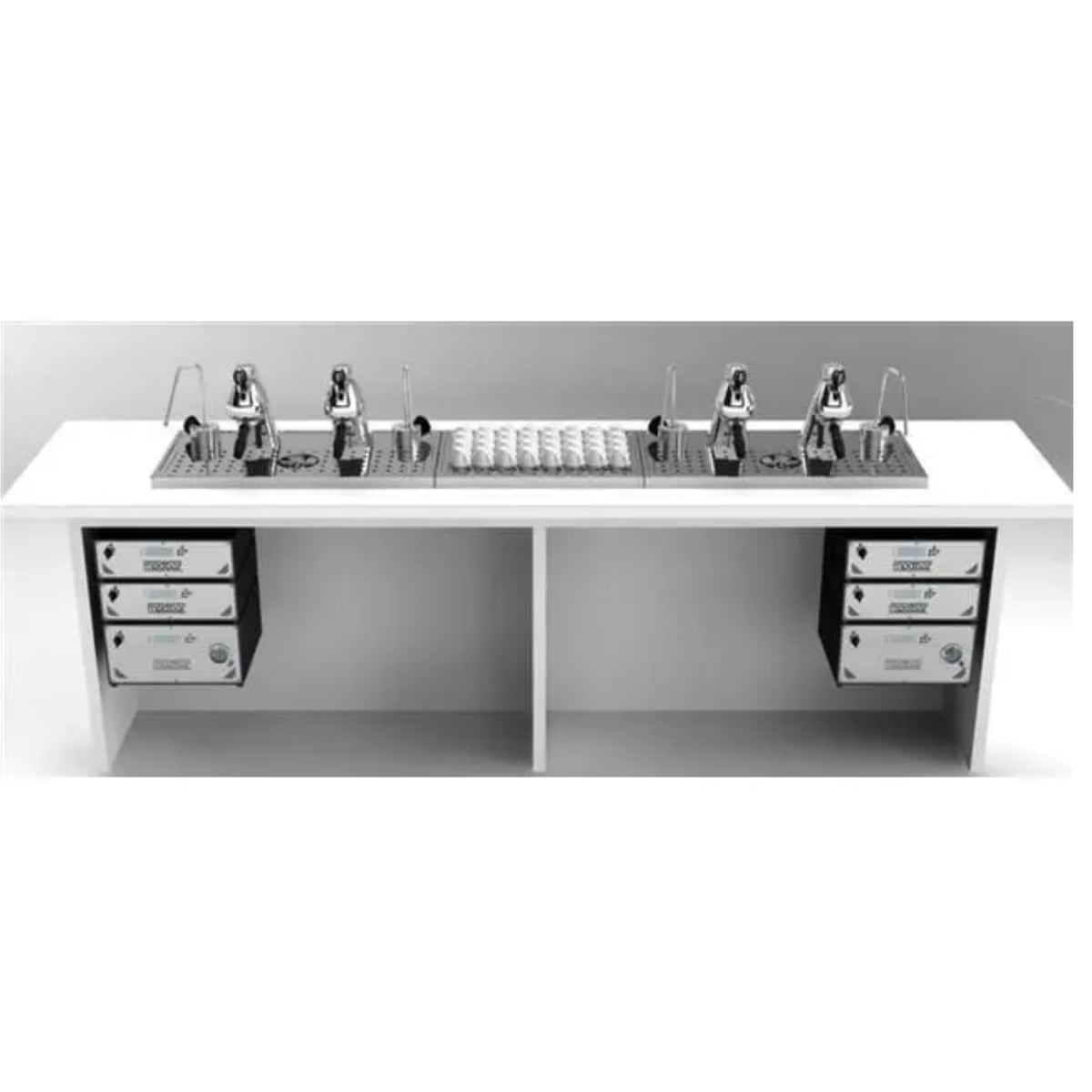

- Set up one or two taps per module and arrange the under-counter however the bar requires
- Choose between multiple brewing modes: pulses, mass, or brew ratio
- Water is heated at multiple stages for perfect temperature stability shot after shot
- Easy-to-use lever with 4 programmable positions
- ABR configurations add integrated scales for automatic brew-by-weight

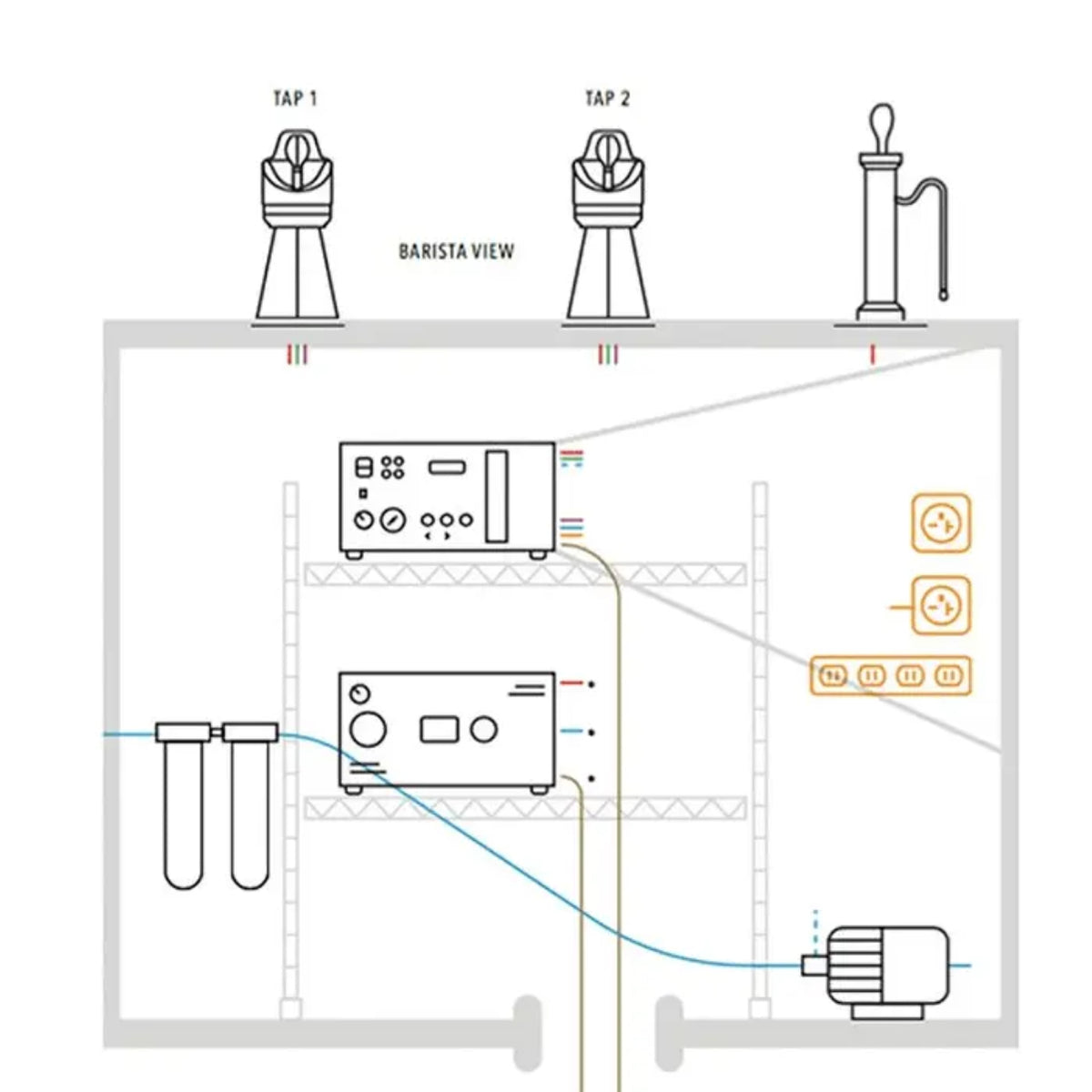

- Easy access to water, power and drain connections for servicing
Configurations
- 1 Group — 1 tap + 1 module
- 1 Group ABR — 1 tap + 1 module, with scales
- 2 Group — 2 taps + 1 module
- 2 Group ABR — 2 taps + 1 module, with scales
Specifications
| 1 Group | 2 Group | |
|---|---|---|
| Tap dimensions (L×D×H) | 14 × 32 × 36 cm (5.4 × 14.0 × 12.5 in) | 14 × 32 × 36 cm (5.4 × 14.0 × 12.5 in) |
| Tap weight | 10.5 kg (23 lbs) | 10.5 kg (23 lbs) |
| Module dimensions (L×D×H) | 43 × 38 × 22 cm (17.0 × 14.9 × 8.5 in) | 43 × 38 × 22 cm (17.0 × 14.9 × 8.5 in) |
| Module weight | 16.5 kg (36.5 lbs) | 18 kg (40 lbs) |
| Boiler capacity | 1.4 L | 2.8 L (dual boiler) |
| Electrical (ETL / North America) | 208–240 V, 7 A, 1545–1650 W, 60 Hz, single phase | 208 V, 13 A, 2733 W, 60 Hz, single phase |
Commercial installation required. Plumbing, drain and a dedicated electrical circuit must be prepared by a qualified installer. Freight quoted separately.
