La Marzocco Leva X: Advanced Mechanical Espresso Engineering
The La Marzocco Leva X bridges the gap between traditional mechanical extraction and modern digital profiling. Designed for high-volume specialty cafes, it reimagines the traditional lever mechanism by integrating real-time telemetry, providing a consistent, tactile brewing process without sacrificing data visibility.
Mechanical Lever System
While traditional lever machines are known for the natural declining pressure profiles that produce a distinct extraction, they historically require significant physical effort and present safety risks from pressure release. The Leva X addresses these mechanical constraints.
Ergonomic Cam System: Redesigned cam geometry reduces the downward physical force required by up to 50% compared to standard lever groups.
Anti-Kickback Clutch: A proprietary mechanical clutch prevents the lever from aggressively snapping back upon sudden pressure loss, such as premature portafilter removal or overly coarse grinds.
Spring-Driven Extraction: Heavy-duty internal coil springs deliver a soft, low-pressure pre-infusion, followed by a naturally declining 9-to-11 bar pressure profile to optimize extraction yield.
Digital Profiling and Group Control
Unlike fully analog lever systems, the Leva X provides absolute visibility into the mechanical process. It upgrades the analog Leva S architecture with dedicated digital interfaces and independent group control.
Live Extraction Telemetry: Dedicated Smart Digital Displays above each group head provide real-time graphical feedback on the spring's pressure profile, pre-infusion pressure, and overall extraction time.
Independent Group Boilers: Dedicated boilers for each group head allow for precise, independent temperature calibration across different roast profiles simultaneously.
Data-Driven Consistency: Real-time visual feedback allows for precise calibration of grind and dose based on exact mechanical outputs.
Chassis and Internal Architecture

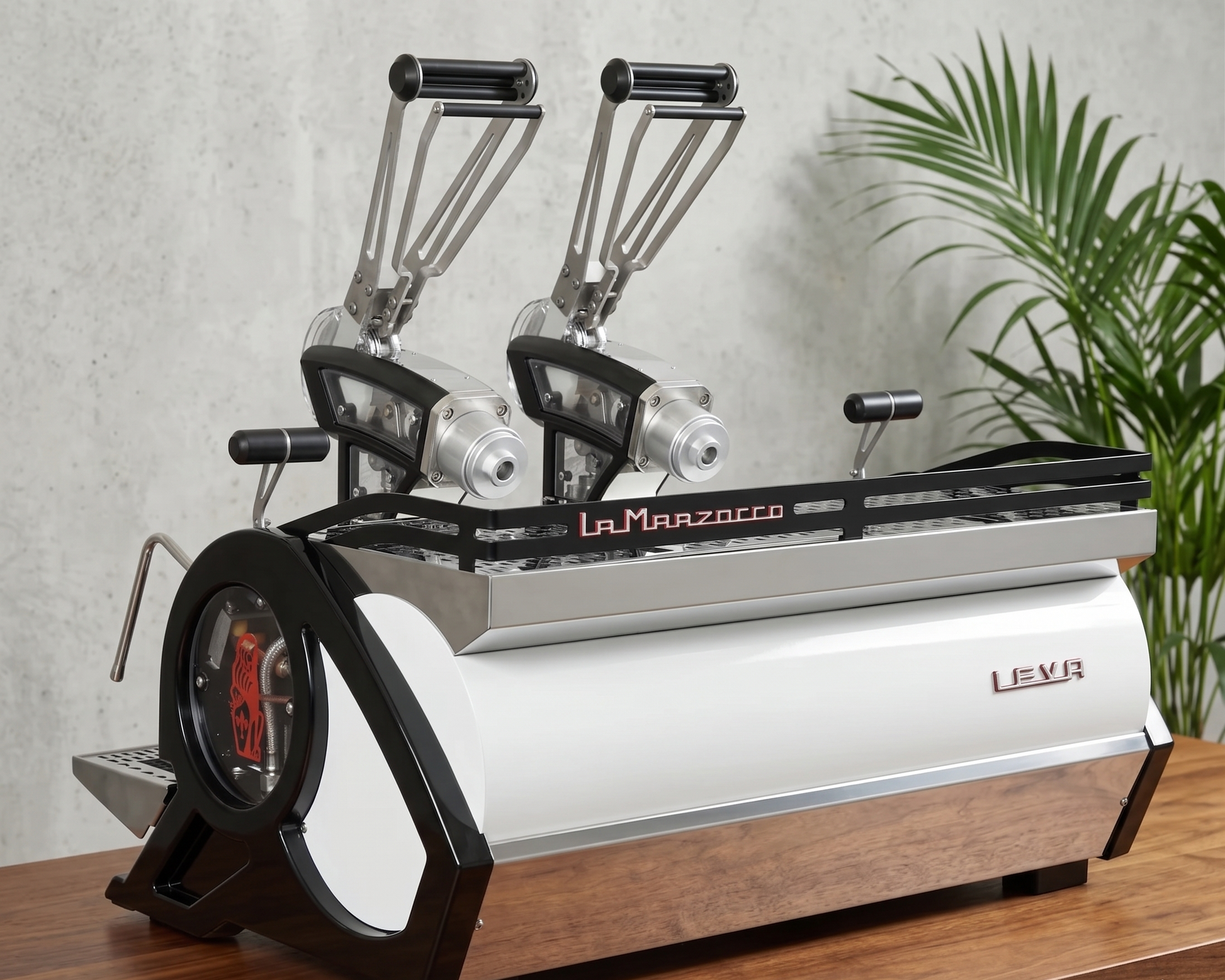

Built on a highly durable commercial chassis, the Leva X utilizes an exposed dual-boiler architecture and robust mechanical linkages. Tempered glass side panels offer full visibility into the internal hydraulic lines, boiler systems, and spring mechanisms.
Features
| Pre-Infusion | Mechanical low-pressure spring pre-infusion |
| Programmable | Smart PID temperature control, Eco Mode, & extraction curves |
| Removable Drip Tray | Adjustable & Removable Drip Tray |
| Pro Touch Steam Wands | High-performance steam wands that remain cool to the touch |
| Firmware Updates | Easily update machine firmware via USB |
| Exposed Mechanics | Tempered glass panels highlighting spring-loaded group heads and internal architecture |
| Military-Grade Steam Valves | Designed for high-volume use with minimal maintenance requirements |
Tech Specs
| Boiler Size (Coffee) | 2 x 1.3 Liters (For 2-Group) |
| Boiler Size (Steam) | 8.2 Liters (For 2-Group) |
| Boiler Type | Independent Saturated Boilers |
| Dimensions (H) | 77.5 cm (30.5 in) |
| Dimensions (D) | 64.5 cm (25.5 in) |
| Dimensions (W) | 80.0 cm (31.5 in) (For 2-Group) |
| Group Head | Saturated, Spring-Lever Activated |
| Number of Groups | 2 Groups |
| Pump Pressure | 9 to 11 Bar (Declining mechanical spring pressure) |
| Pump Type | Internal Rotary Pump (Operates boiler fills; extraction is entirely spring-driven) |
| Water Connection | Direct Plumbed (Firm water connection) |
| Water Source | Plumbed In |
| Total Wattage | 5670 W (For 2-Group) |
| Weight | 99 kg / 218 lbs (For 2-Group) |
Advanced Engineering Details
| Hydraulic Logic | Features military-grade proportional steam valves and proprietary mechanical clutches on each group to prevent sudden lever kickback. |
| Electrical & Logic System | Dedicated Smart PID displays for each group head offering real-time telemetry (pre-infusion pressure, shot time, and extraction pressure curves), with a USB port for localized firmware updates. |
The La Marzocco Leva X offers a unique combination of mechanical reliability and precise digital feedback, making it a robust, highly capable asset for any demanding specialty coffee environment.
