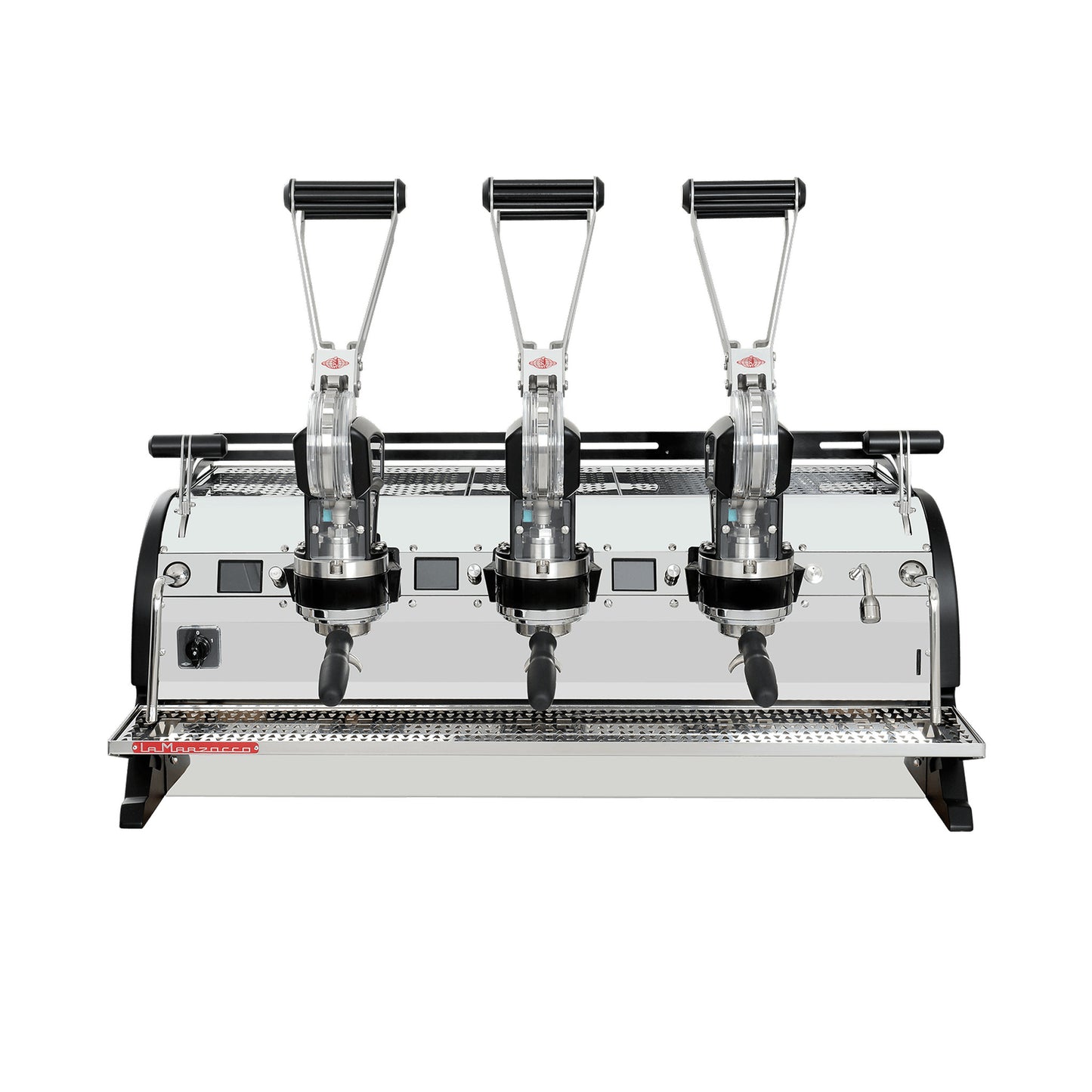

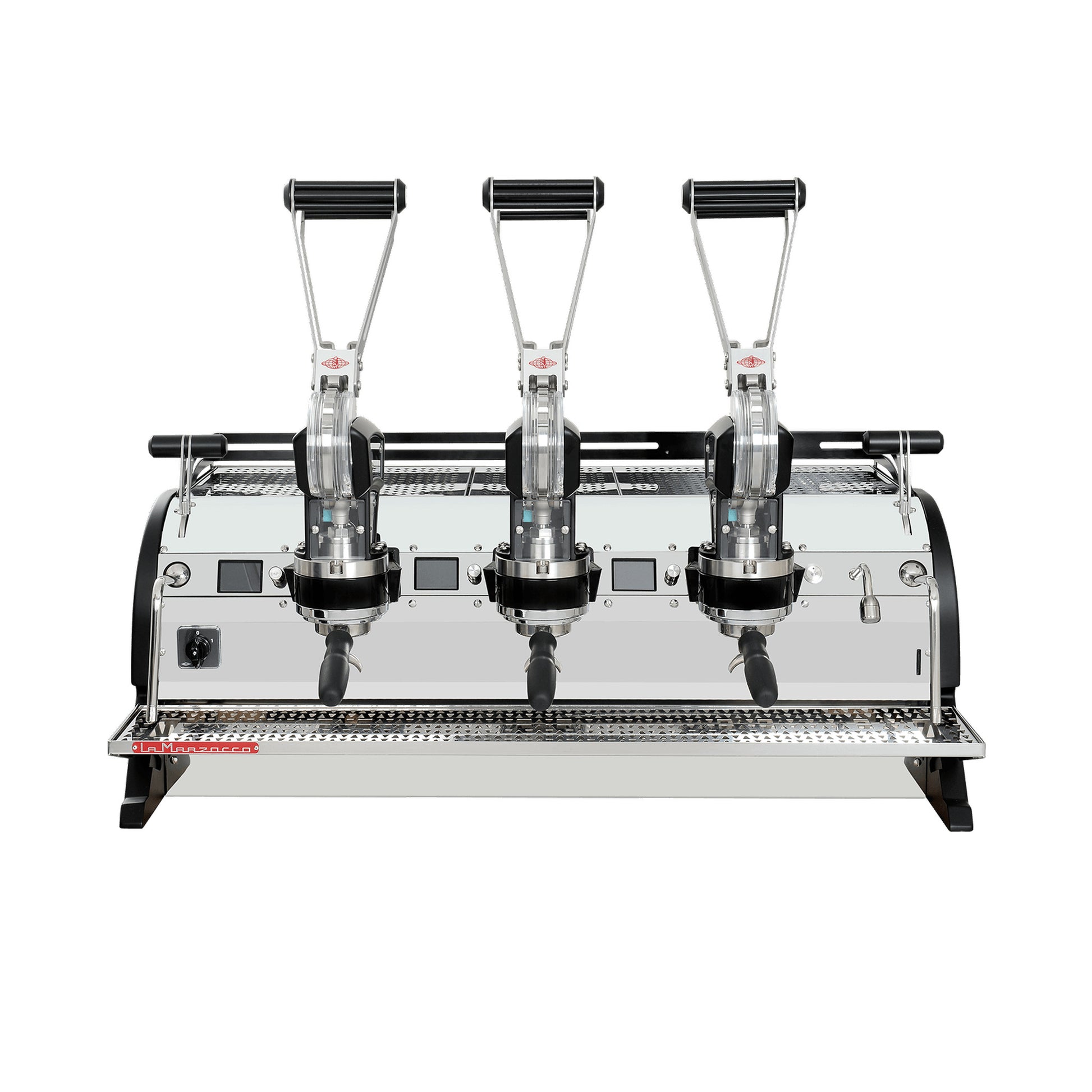

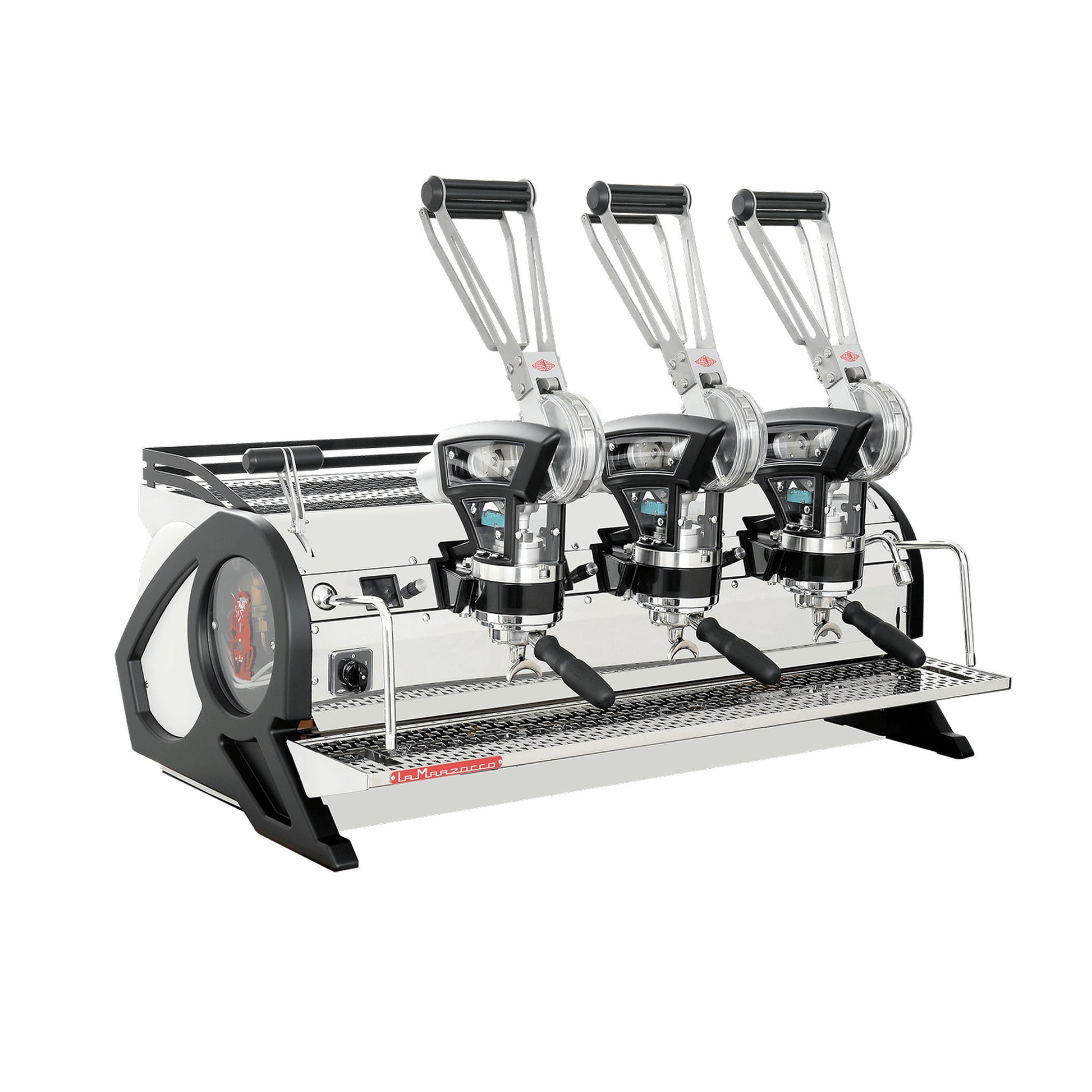

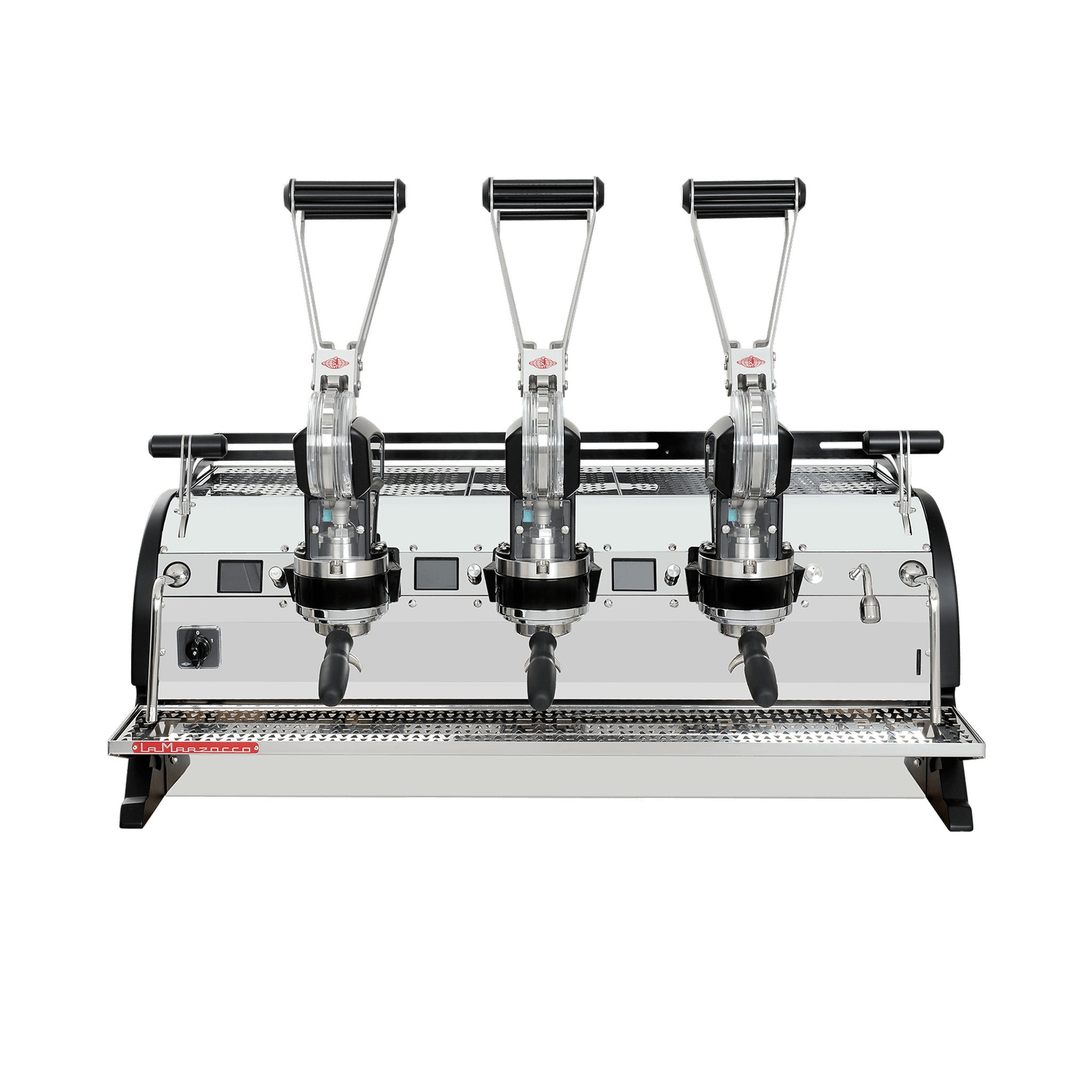

La Marzocco Leva X Commercial Lever Espresso Machine (3 Group)

The three-group Leva X is a spring-piston lever machine with a screen above every group telling you exactly what the spring is doing. Extraction is purely mechanical — pulling the lever compresses a heavy internal spring, and the spring pushing the piston back down is what pulls the shot. What the X adds is visibility and per-group thermal control that no traditional lever has ever offered.

What the X adds over the Leva S

• Three independent 1.3 L brew boilers: one per group at 800 W each, instead of the S's single shared 5 L boiler. Three coffees, three brew temperatures, on a lever machine.
• Smart PID: tighter temperature control per group, managed from the group displays.
• Live pressure visualisation: a graphical display above each group showing pre-infusion pressure, extraction pressure and time as the shot happens. On a mechanical machine this is genuinely useful — it lets a barista correlate grind and dose to the actual spring curve rather than guessing from the cup.
• Military-grade steam potentiometer: finer steam control, built for high-volume service with minimal maintenance.

The lever itself

• Redesigned cam geometry reducing operating force by almost 50% versus a traditional lever machine.
• Mechanical safety clutch preventing lever kickback on sudden pressure loss.
• Adjustable pre-infusion, 2 to 4 bar, set with a regulator knob. Maximum delivery pressure should never exceed 12 bar, marked red on the gauge.
• 11.8 L steam boiler at 4000 W, Pro Touch cool-to-touch wands and a hot water economizer as standard.

Best suited to

Roastery flagships and destination bars running multiple coffees, competition and training environments, and any high-volume programme that wants the lever pressure curve with data behind it.

Note the Leva's height: at 30.6 in it is roughly 11 in taller than a Strada or Linea and needs its overhead clearance planned, and at 284 lb the counter needs checking too. Requires a dedicated 50 A circuit. To be clear on what the X is not: the displays visualise the spring's pressure, they do not programme it, and there are no integrated scales or Auto Brew Ratio on the Leva line. Certified UL-197, NSF-8 and CAN/CSA-C22.2 No. 109.
